Exploring the Structure, Working Principle, and Operation of Pneumatic Grease Guns

Exploring the Structure, Working Principle, and Operation of Pneumatic Grease Guns

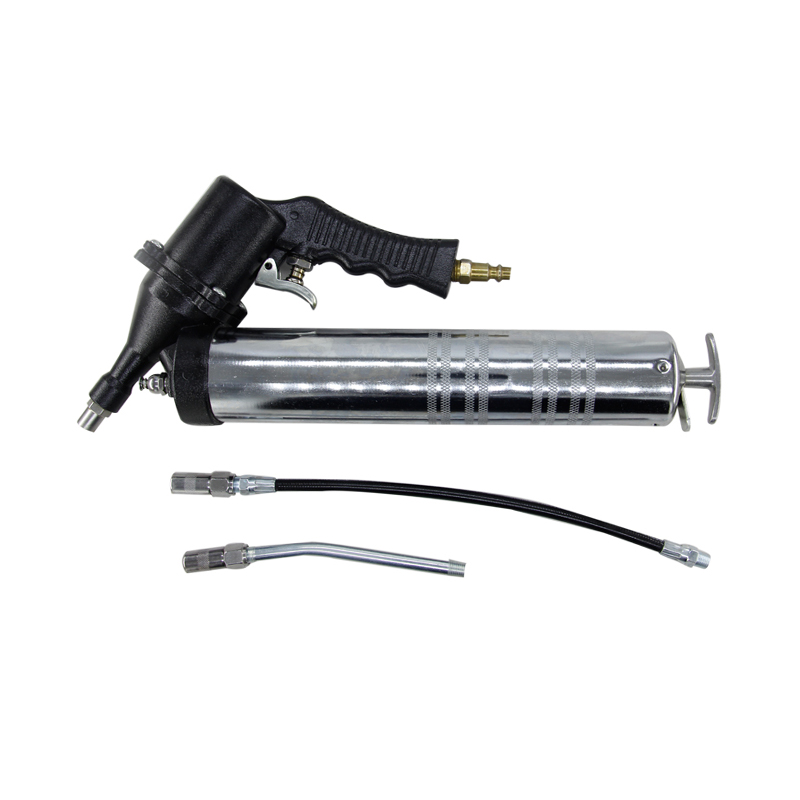

Pneumatic grease guns are essential tools in various industries, facilitating efficient lubrication of machinery and equipment. Structure of Pneumatic Grease Guns: Components and Design Pneumatic grease guns consist of several key components designed to deliver grease efficiently and accurately. These components typically include:
Handle and Trigger Mechanism: The handle houses the trigger mechanism, which controls the flow of compressed air to the grease gun.
Grease Reservoir: A reservoir or cartridge holds the grease to be dispensed. This reservoir is often transparent or translucent to allow easy monitoring of grease levels.
Air Inlet: An air inlet port connects the grease gun to an external air compressor or pneumatic system.
Piston and Cylinder Assembly: The piston and cylinder assembly is responsible for pressurizing the grease and forcing it through the dispensing nozzle.
Dispensing Nozzle: The dispensing nozzle directs the flow of grease onto the target lubrication points.
Working Principle of Pneumatic Grease Guns: Pressurized Lubrication
The working principle of pneumatic grease guns revolves around pressurized lubrication. When connected to an air compressor or pneumatic system, compressed air enters the grease gun through the air inlet. The trigger mechanism controls the release of compressed air, which acts on the piston inside the cylinder.
As the trigger is activated, compressed air pushes the piston forward, creating pressure within the grease reservoir. This pressure forces the grease to move through the dispensing nozzle, where it is directed onto the target lubrication points.
Operation of Pneumatic Grease Guns: Efficient and Precise Lubrication
Operating a pneumatic grease gun requires attention to detail and proper technique to ensure efficient and precise lubrication. The following steps outline the typical operation of a pneumatic grease gun:
Prepare the Grease Gun: Ensure that the grease reservoir is filled with the appropriate type and amount of grease. Connect the grease gun to the air compressor or pneumatic system using the air inlet port.
Select the Lubrication Points: Identify the lubrication points on the machinery or equipment that require greasing.
Activate the Trigger: Squeeze the trigger to release compressed air into the grease gun. This pressurizes the grease reservoir and initiates the flow of grease through the dispensing nozzle.
Apply Grease: Direct the dispensing nozzle to the target lubrication points and apply grease in controlled bursts. Move the nozzle as needed to ensure thorough coverage of each lubrication point.
Monitor Grease Levels: Keep an eye on the grease levels in the reservoir and refill as needed to prevent interruptions in lubrication.
By following these steps and employing proper techniques, operators can maximize the efficiency and effectiveness of pneumatic grease guns in lubricating machinery and equipment across various industrial applications.
Pneumatic grease guns are indispensable tools for lubrication in industrial settings, offering efficient and precise delivery of grease to machinery and equipment. With their sturdy construction, pressurized lubrication principle, and straightforward operation, pneumatic grease guns play a vital role in ensuring the smooth operation and longevity of machinery in diverse industrial sectors. Understanding the structure, working principle, and operation of pneumatic grease guns is essential for maintenance professionals and operators seeking to optimize lubrication practices and enhance equipment performance.
